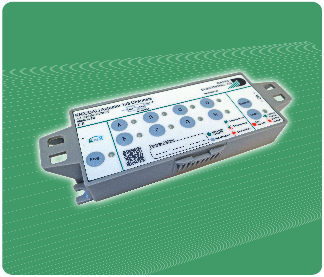

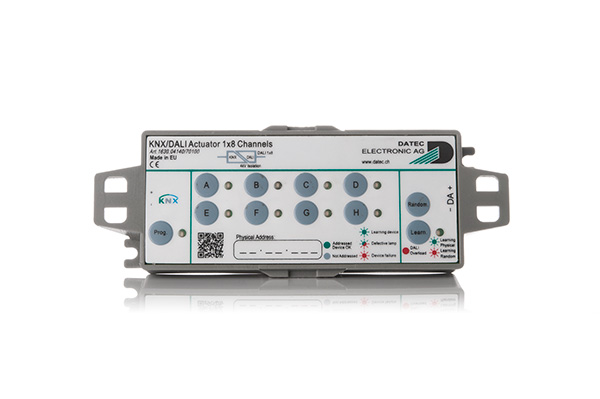

KNX/DALI actuator 1x8Kanäle ..
Art. Nr. 1630.04140/70100
The KNX / DALI Gateway is a device for controlling and monitoring up to
8 DALI ballast. With its KNX input which is transformed into a DALI signal
it is not necessary to have complex electrical installations, and due to its
decentralized housing it can be installed near the lighting equipment
(suspend ceilings) to avoid additional costs of wiring. Each lamp may also
be controlled manually using the buttons on the device. Part of the monitoring
is directly visible on the device itself. This is useful for commissioning lamps
and test the installation even without KNX Programming.
KNX bus Power is sufficient for this purpose.
